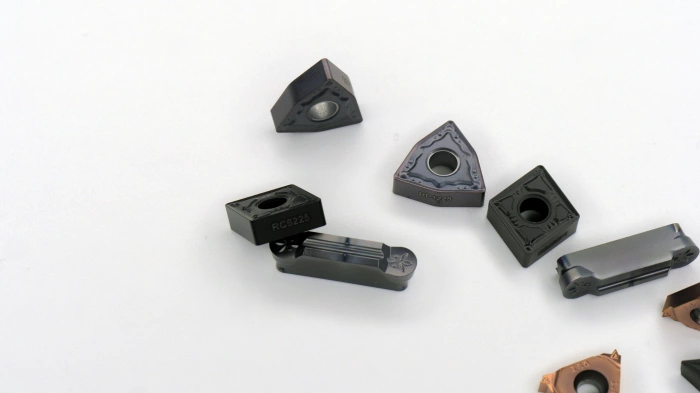

Recommendations for Choosing RUIAN Carbide Inserts

Turning

For machining steel, the most popular grades are:

• RC6215 or RC6215D – high cutting speed, improved tool life under stable conditions; most popular with semi-finishing/finishing chipbreakers TG or TF.
• RC6225 or RC6225D – universal grade for machining steel, proven effective with semi-roughing chipbreaker GM; allows speeds up to 300 m/min and withstands minor impact loads.

For stainless steel (PVD):

• RP1020 – for unstable conditions and low cutting speeds, combined with semi-finishing/finishing chipbreaker TG.
• RP1225 – for high-speed machining of stainless steels from roughing to semi-finishing, combined with chipbreaker TM.
• RP9125B – suitable for machining 12Х18Н10Т (austenitic corrosion-resistant, heat-resistant, and heatproof stainless steel).

For machining cast iron (CVD):

• RC8305H – suitable for high-speed finishing of cast iron; ultrafine WC-Co grade, coated with Al2O3/MT-TiCN.
• RC8315A – universal grade for machining cast iron; medium-grain WC-Co grade, coated with Al2O3/MT-TiCN; proven effective with universal chipbreaker KM.

For grooving and parting operations:

• RP9125C – universal grade for machining steels and stainless steels.

Milling and Hole Machining

• RP9125B or RP9125C – both grades perform excellently in hole machining and milling of all steels up to 45 HRC.
• RP1020 – grade for rough machining of steel and stainless steel.
• RP1205 or RP9025 – grades used in mold manufacturing and machining of hardened steels up to 55–60 HRC.

Important Information!

The information presented in technical articles and reviews on the Site is for informational and educational purposes only and is intended for general understanding of the principles of operation, characteristics, and application of cutting tools and machine tooling.

All calculations, formulas, recommendations, and technical data provided in the materials are taken from manufacturer catalogs and may be used only as reference values. Final determination of parameters and application conditions must be made by a qualified specialist (technologist, engineer) in production or by a qualified employee of our company.

Iron Park LLC is not responsible for possible errors, omissions, or misuse of the information contained in the articles and reviews.

We recommend always consulting a technical specialist before applying recommendations in production conditions.
